Impact Absorbing Playground Tiles - Product Info

PLAYSQUARE™ is a premium rubber flooring product created by Kenco Group Limited, a Hong Kong company. The goal is to provide a healthy and safe play environment for children. The products are certified by international safety standards such as EN-1177 and BS-7188. Made with environmental-friendly recycled rubber, PLAYSQUARE™ is especially suitable for schools, kindergartens, playgrounds and parks.

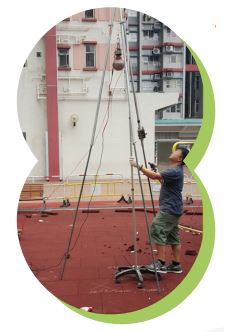

BS7188 Full Test

✔ Critical Fall Height

✔ Resistance to Abrasive Wear

✔ Slip Resistance

✔ Ease of Ignition

✔ Resistance to Indentation

✔ Tensile Properties

✔ Weight per Unit Area

Impact Absorbing Playground Tiles

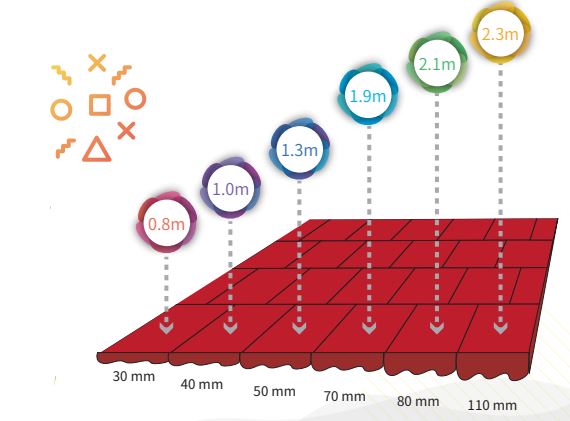

PLAYSQUARE™ rubber tiles have a critical fall height measured by Head Injury Criterion (HIC). This feature can reduce the chance of serious injury when fall form the playground equipment.

CRITICAL FALL HEIGHT

30mm       0.8m

40mm       1.0m

50mm       1.3m

70mm       1.9m

80mm       2.1m

110mm     2.3m

EN1177:2018 standard

SBR RUBBER TILES

Description PLAYSQUARE™ SBR Rubber Tiles
Materials Recycled SBR Rubbber Materials & PU Binder
Dimension (mm): 500 x 500
Thickness (mm): 30, 40, 50, 70, 80, 110
Layer : One Layer
Color : Red, Green, Blue, Yellow

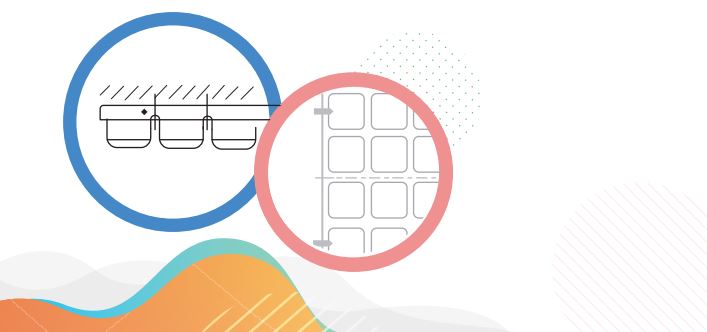

Installation : Interlocking installation Without Adhesive

With 19 standard colours range selections, designers have plenty of room to create fun, stimulating and UV resistant playground surfaces. The technical properties of PLAYSQUARE™ rubber tiles include wear and weather resistance.

EPDM RUBBER TILES

Description PLAYSQUARE™ EPDM Rubber Tiles
Base Layer Materials Recycled SBR Rubbber Materials & PU Binder
Dimension (mm): 500 x 500
Thickness (mm): 30, 40, 50, 70, 80, 110
Layer : Two Layer
Color : Red, Green, Blue, Yellow
Installation : Interlocking installation Without Adhesive
